| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Orifice Size(mm) | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| Port Size | G3/8" | G1/2" | G3/4" | G1" | G 1 1/4" | G1 1/2" | G2" |
| CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Working Medium | Air,Water,Oil | ||||||
| Operation | Direct Action | ||||||
| Acting Type | Normal Close / Normal Open | ||||||
| Operation Fluid Viscosity | 20 CST Below | ||||||
| Operating Pressure | Air:0~1.0MPa,Water:0~0.7MPa,Oil:0.9MPa | ||||||
| Max. Pressure Resistance | NC:1MPa;Â NO:0.8MPa | ||||||
| Material of Oil Seal | NBR or VITON | ||||||
| Operating Temperature | NBR for -5 ~80°C and VITON for -5~150°C | ||||||
| Voltage Range | ±10% | ||||||
| Material of Body | Brass | ||||||
Company Show
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Orifice Size(mm) | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
| Port Size | G3/8" | G1/2" | G3/4" | G1" | G 1 1/4" | G1 1/2" | G2" |
| CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Working Medium | Air,Water,Oil | ||||||
| Operation | Direct Action | ||||||
| Acting Type | Normal Close / Normal Open | ||||||
| Operation Fluid Viscosity | 20 CST Below | ||||||
| Operating Pressure | Air:0~1.0MPa,Water:0~0.7MPa,Oil:0.9MPa | ||||||
| Max. Pressure Resistance | NC:1MPa;Â NO:0.8MPa | ||||||
| Material of Oil Seal | NBR or VITON | ||||||
| Operating Temperature | NBR for -5 ~80°C and VITON for -5~150°C | ||||||
| Voltage Range | ±10% | ||||||
| Material of Body | Brass | ||||||
Company Show
Little Elephant Tool offers many products for Granite and Stone Installation. From Clamps to suction cups, we've got the tools needed for installation suction cup sizing includes: 45° Stone Mitre Clamp, Vacuum Stone Seam Setter, 45° Stone Mitre Clamp(Metal handle with nylon feet), 45° Stone Mitre Clamp enlarge type, Stone Sink Hole Saver, Mini Seam Setter, Hand Carry Clamps, Self Locking Trolley.

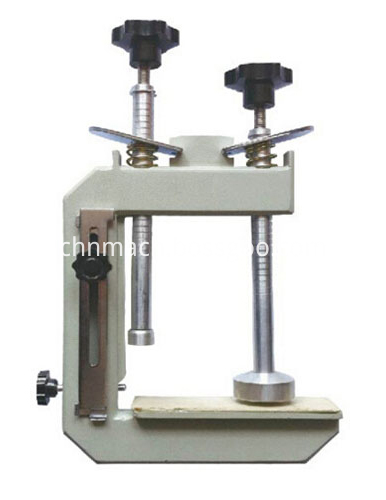

Product Name: 45° Stone Mitre Clamp(Plastic handle with metal feet)
|
Model |
Max Processing Height(mm) |
Size(mm) |
Weight(kg) |
Pcs/Ctn |
|
FRMC-1 |
130 |
210x66x335 |
2.5 |
6 |
1.45 ° Mitre Clamp is mainly use for the stone sheet stitching, It can aslo used for other similar sheet of 45 stitching.
2.When two workpieces are processed into a 45 edge bevel, then clean the 45 face of workpiece, evenly coated with adhesive, then put two workpiece of 45 bevel face assembling together, and the two 45°workpiece fit into a 90 with each other, use the fixture in plastic extrusion seam stitching.
3.First, put the bottom of width stone on the fixture work surface which with white rubber, the side of the narrow stone close to the 90 inside of the fixture.
4.Then two binder lever can be adjusted by adjusting spring device access to the top position of the workpiece,then rotating the screw at the top of the binder lever to put pressure in place to maintain the fixture locked position for a certain time, until the workpiece fully bonded joints, solid, and then release the fixture.
