CNC High Precision Lathe Machine Ck6136

Posted on

Model NO.: CNC lathe machine
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision
Certification: GS, CE
Condition: New
Max Swing Over Bed: 360/500/600/660/800mm
Max Swing Over Cross Slide: 190mm
Max Swing Over Gap: 520mm
Workpiece Cutting Length: 750\1000\1500\2000\3000mm
Bed Width: 360/400mm
Spindle Hole: 52/65/80mm
Trademark: Huantu Machinery
Transport Package: Wooden Case
Specification: 4200x1500x2200mm
Origin: Shanghai China
HS Code: 8458190000
Model NO.: CNC lathe machine
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision
Certification: GS, CE
Condition: New
Max Swing Over Bed: 360/500/600/660/800mm
Max Swing Over Cross Slide: 190mm
Max Swing Over Gap: 520mm
Workpiece Cutting Length: 750\1000\1500\2000\3000mm
Bed Width: 360/400mm
Spindle Hole: 52/65/80mm
Trademark: Huantu Machinery
Transport Package: Wooden Case
Specification: 4200x1500x2200mm
Origin: Shanghai China
HS Code: 8458190000
SHANGHAI HUANTU TECHNICAL INDUSTRY CO., LTD
NO. 1187 AKESU Road, Jiading District, SHANGHAI, CHINA
Web: huantumachinery.en.alibaba.com    www.huantutech.com
Contact: Cindy He
Tel: +86 21 3377 9007
Fax: +86 21 33510290
Mobile:+86 15021180416

CNC High Precision Lathe Machine Ck6136
CNC High Precision Lathe Machine Ck6136
CNC High Precision Lathe Machine Ck6136

Main Specification
Model CC61236 CC61240    CC61250



CAPACITY		 Max. swing dia. Over bed 360mm 400mm 500
Max.swing over cross slide 190mm 230mm 330
Max.swing over gap 520mm 560mm 660
Workpiece cutting length 750\1000\1500\2000\3000mm
Bed Width 360mm


HEADSTOCK		 Spindle hole 52/65/80mm
Spindle nose ISO-C6
Spindle taper MT6
Spindle speed(Number) 42-1600rpm/44-1400rpm(12steps)

FEEDS		 Metric threads range 0.25-14mm(19 kinds)
Inch threads range 2-40inch (49 kinds)
Moudle threads range 0.5-3.5mm(17 kinds)


CARRIAGE		 cross slide travel 120mm
Max.travel of cross slide 180mm
Max.size of toolshank 20*20mm2

TAILSTOCK		 Taper of tailstock sleeve MT4/MT5
Diameter of tailstock sleeve 65/75mm
Travel of tailstock sleeve 140/160mm
Main motor power 4kw/5.5kw

PACKING
L*W*H		 Center Distance(750mm) 225*115*1600cm
Center Distance(1000mm) 245*115*1600cm
Center Distance(1500mm) 295*115*1600cm
Center Distance(2000mm) 345*115*1600cm


N.W/G.W		 Center Distance(750mm) 1350/2000kg
Center Distance(1000mm) 1450/2100kg
Center Distance(1500mm) 1600/2250kg
Center Distance(2000mm) 1750/2400kg

Standard Accessories
1.3-Jaw universal Chuck
2.4-Jaw individual Chuck
3. Face plate
4. Dirving plate
5. four way turret tool post
6. Standard steady
7. Follower rest
8. Full set of wrench
9. longitudinal stop or four longitudinal stop
10. Wrenches, oil gun, operation manual

Optional Accessories
1. Knurling tool
2. Live center
3. Taper gauge
4. Electromagnetic brake
5. Quick change tool
6. with CE
7. DRO Digital display

After Sales Service
1.Our warranty is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.

About us
Shanghai HUANTU Technical Industry Co., Ltd
1.    Shanghai HUANTU Technical Industry Co., Ltd located in Shanghai, the largest seaport city and economic center in China.
2.    Shanghai HUANTU is government support enterprise started in 1988 and has more than 28 years industry manufacture experience. In 2006, we introduced German and Japan Technology and become the leader of the metal plate processing machinery manufacturer in China.
3.    We occupy more than 65,000 square meters warehouse, workshop and dedicated to the research and development, production and sales of medium and high-rank plate processing machines including CNC hydraulic bending, shearing, notching, rolling, punching, drilling, milling, ironworker and lathe machine, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
4.    National industry is the soul of a nation's economy. Machinery industry is the parent of all other industries. As a rising star in China's national machinery industry, Shanghai HUANTU Technical Industry Co., Ltd is aiming at the world, marching towards the goal of "building up a world-known brand and laying the basic for its development of hundred years".

Shanghai HUANTU Technical Industry Co., Ltd
CNC High Precision Lathe Machine Ck6136 SHANGHAI HUANTU TECHNICAL INDUSTRY CO., LTD
NO. 1187 AKESU Road, Jiading District, SHANGHAI, CHINA
Web: huantumachinery.en.alibaba.com    www.huantutech.com
Contact: Cindy He
Tel: +86 21 3377 9007
Fax: +86 21 33510290
Mobile:+86 15021180416

CNC High Precision Lathe Machine Ck6136
CNC High Precision Lathe Machine Ck6136
CNC High Precision Lathe Machine Ck6136

Main Specification
Model CC61236 CC61240    CC61250



CAPACITY		 Max. swing dia. Over bed 360mm 400mm 500
Max.swing over cross slide 190mm 230mm 330
Max.swing over gap 520mm 560mm 660
Workpiece cutting length 750\1000\1500\2000\3000mm
Bed Width 360mm


HEADSTOCK		 Spindle hole 52/65/80mm
Spindle nose ISO-C6
Spindle taper MT6
Spindle speed(Number) 42-1600rpm/44-1400rpm(12steps)

FEEDS		 Metric threads range 0.25-14mm(19 kinds)
Inch threads range 2-40inch (49 kinds)
Moudle threads range 0.5-3.5mm(17 kinds)


CARRIAGE		 cross slide travel 120mm
Max.travel of cross slide 180mm
Max.size of toolshank 20*20mm2

TAILSTOCK		 Taper of tailstock sleeve MT4/MT5
Diameter of tailstock sleeve 65/75mm
Travel of tailstock sleeve 140/160mm
Main motor power 4kw/5.5kw

PACKING
L*W*H		 Center Distance(750mm) 225*115*1600cm
Center Distance(1000mm) 245*115*1600cm
Center Distance(1500mm) 295*115*1600cm
Center Distance(2000mm) 345*115*1600cm


N.W/G.W		 Center Distance(750mm) 1350/2000kg
Center Distance(1000mm) 1450/2100kg
Center Distance(1500mm) 1600/2250kg
Center Distance(2000mm) 1750/2400kg

Standard Accessories
1.3-Jaw universal Chuck
2.4-Jaw individual Chuck
3. Face plate
4. Dirving plate
5. four way turret tool post
6. Standard steady
7. Follower rest
8. Full set of wrench
9. longitudinal stop or four longitudinal stop
10. Wrenches, oil gun, operation manual

Optional Accessories
1. Knurling tool
2. Live center
3. Taper gauge
4. Electromagnetic brake
5. Quick change tool
6. with CE
7. DRO Digital display

After Sales Service
1.Our warranty is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.

About us
Shanghai HUANTU Technical Industry Co., Ltd
1.    Shanghai HUANTU Technical Industry Co., Ltd located in Shanghai, the largest seaport city and economic center in China.
2.    Shanghai HUANTU is government support enterprise started in 1988 and has more than 28 years industry manufacture experience. In 2006, we introduced German and Japan Technology and become the leader of the metal plate processing machinery manufacturer in China.
3.    We occupy more than 65,000 square meters warehouse, workshop and dedicated to the research and development, production and sales of medium and high-rank plate processing machines including CNC hydraulic bending, shearing, notching, rolling, punching, drilling, milling, ironworker and lathe machine, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
4.    National industry is the soul of a nation's economy. Machinery industry is the parent of all other industries. As a rising star in China's national machinery industry, Shanghai HUANTU Technical Industry Co., Ltd is aiming at the world, marching towards the goal of "building up a world-known brand and laying the basic for its development of hundred years".

Shanghai HUANTU Technical Industry Co., Ltd
CNC High Precision Lathe Machine Ck6136

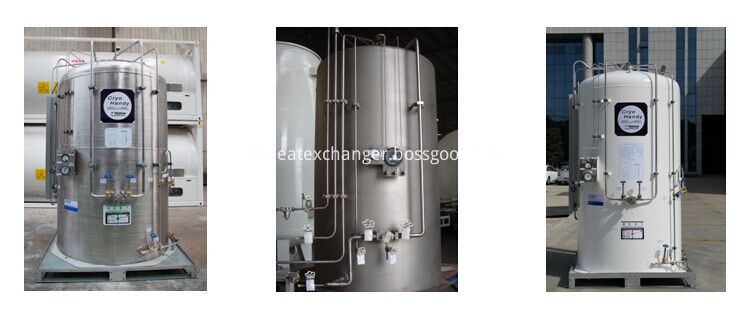

Mini Cryogenic Tank is designed and fabricated as per the standards of GB150,Q/3204DA001 and GB18442,

etc. It is applied for the field service system of industrial gas and LNG. It has the characteristics of quickness, convenience

and economy, is the new choice of medium and small users. There are three pressure grades for maximum working

pressure: 1.6MPa, 2.4MPa and 3.5MPa, five capacity specs: 1m3~5m3.

Mini Cryogenic Tank adopts unique vacuum insulation technology to ensure the persistent high vacuum maintaining time. It

Has the characteristic of excellent thermal performance and low loss of gas.

The modular pipeline system improves the performance and durability of equipment, and reduces the maintenance

cost, thus greatly enhances the product competitive advantage. The centralized outlet design for outer pipeline, the side

hanging type design for automatic booster and vaporizer of storage tank have the characteristics of better effect and

convenient maintenance; the integrated design for pipeline and valve is convenient for installation and movement of

storage tank. The storage tank has the advantages of simple and convenient operation. Each module is connected

with joints, convenient for transportation and installation.

The complete base design is convenient for installation and moving by forklift, without crane.




Fluid: LOX, LIN, LAR,LNG
Capacity: 1~5m3
WP: 1.6MPa, 2.4MPa, 3.5MPa
